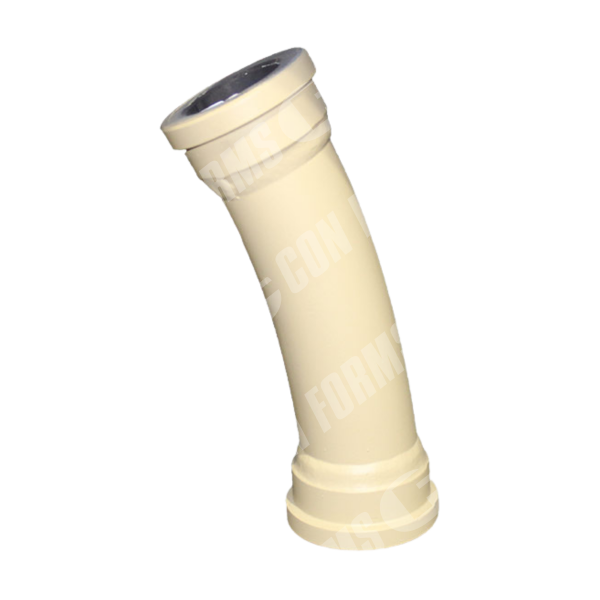

Placing Elbow/Bend – Placing Elbow/Bend | ID: DN127/5″ | BA: 22 | CLR: 18 | HD | 10.5″ HGT | HT

Description

Placing Elbow/Bend | ID: DN127/5″ | BA: 22 | CLR: 18 | HD | 10.5″ HGT | HT Steel laydown/placing line components comes in multiple wall thicknesses, sizes, and configurations to match a multitude of line-pumping applications. Hardened versions are available for longer life.
INSIDE DIAMETER [IN/MM] – DN127/5″, ANGLE [DEGREES] – 22°, END STYLE – Hevi-Duty™, HEAT TREATMENT – Heat Treated, Centerline Radius (CLR) – 18.00″, Height (face to highest point) – 10.50″ / 267mm, PRESSURE RATING [BAR/PSI] – 130 / 1885,
