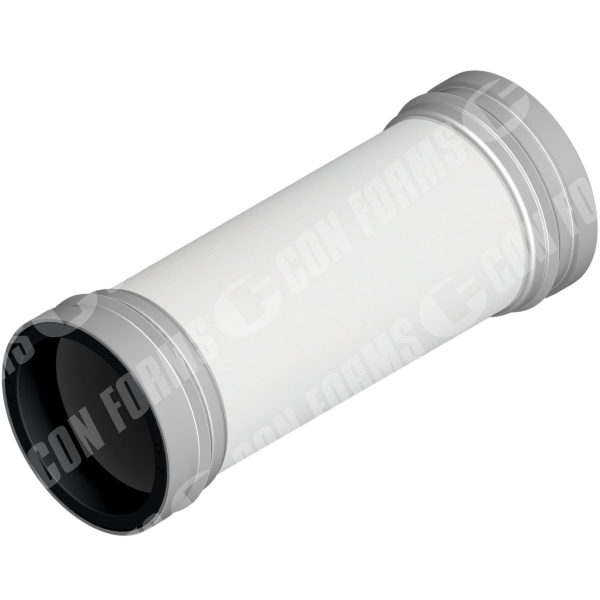

Advantage UL Boom Pipe – Boom Pipe | ID: DN125/4.8″ | OAL: 66.33″ | WT:2.2mm + 1.8mm | Metric

Description

Boom Pipe | ID: DN125/4.8″ | OAL: 66.33″ | WT:2.2mm + 1.8mm | Metric New boom and deck parts meet or exceed 85 bar working and 170 bar burst pressure ratings, and are tagged with size, part number, weight (FWC) and working pressure.
INSIDE DIAMETER [IN/MM] – DN125/4.8″, END STYLE – Metric, LENGTH [IN/MM] – 66.33″ / 1685mm, Wall Thickness – Twin Wall – 2.2mm + 1.8mm, Wall Type – Twin-Wall™ – Light Weight, MODEL – TW 2 + 2 Boom Pipe, Pressure – Meets 85 bar working / 170 bar burst – Yes, PRESSURE RATING [BAR/PSI] – 85 / 1233, Weight – F.W.C. / foot – 28.5 lbs/ft (12.9 kg/ft), Hardness – Up to 68HRc, LINER TYPE – Hardened Steel Liner, Typical Application – Boom, CLASSIFICATION – Advantage,
